Complete documentation for all FluxOptics.jl modules and functions.

Module Overview

FluxOptics is organized into focused modules for different aspects of optical simulation and inverse design.

Foundation

GridUtils - Coordinate systems and transformations Creates coordinate systems for evaluating optical modes and components on spatial grids. Provides 2D transformations (translations, rotations) and coordinate composition.

Modes - Optical mode generation Generates common optical beam profiles (Gaussian, Hermite-Gaussian, Laguerre-Gaussian) and spatial layouts for multi-mode configurations. Includes speckle generation with controlled statistics.

Fields - Field representation and operations Provides the ScalarField type, the central data structure representing optical fields with associated grid information, wavelength, and propagation direction. Supports multi-wavelength, tilt tracking, and field operations.

Optical Components

Optical Components - Building blocks for optical systems

The heart of FluxOptics, providing all optical elements and system composition tools.

Core infrastructure:

  • Core - Abstract component hierarchy, trainability system (Static/Trainable/Buffered), and bidirectional propagation interface

Creating and modifying fields:

  • Sources - Generate initial optical fields (e.g., ScalarSource). Sources are trainable, allowing optimization of input beam profiles
  • Modulators - Modify field amplitude and phase: Phase for pure phase modulation, Mask for amplitude/complex transmission, TeaDOE for diffractive elements
  • Fourier - Frequency-domain operations. FourierWrapper applies components in Fourier space, while FourierPhase and FourierMask provide convenient filtering

Propagating fields:

  • Free-Space Propagators - Field propagation through homogeneous media: Angular Spectrum (ASProp), Rayleigh-Sommerfeld (RSProp), Collins integral for ABCD systems, Fourier lenses
  • Bulk Propagators - Beam Propagation Method (BPM) for inhomogeneous media with spatially-varying refractive index. Supports paraxial and non-paraxial tilted propagation
  • Active Media - Stationary gain and amplification with saturable gain sheets

Building systems:

  • System - System construction using pipe operator |> to chain components. Fully differentiable and callable. FieldProbe captures intermediate fields for custom objectives, visualization, and debugging

Advanced utilities:

  • Utilities - Helper components: PadCropOperator for aliasing-free Fourier-based convolution, TiltAnchor for off-axis beam tracking, BasisProjectionWrapper for reduced-parameter optimization

Optimization

OptimisersExt - Optimization algorithms and proximal operators Custom optimization rules (Descent, Momentum, FISTA) and proximal operators for constrained optimization. Use make_rules for per-component learning rates, ProxRule for regularization (TV, sparsity, constraints). Integration with Optimisers.jl ecosystem.

Metrics - Loss functions for inverse design Field overlap metrics (DotProduct, PowerCoupling) for mode matching, field and intensity matching objectives (SquaredFieldDifference, SquaredIntensityDifference). Custom gradient implementations for efficiency.

Visualization

Plotting - Visualization tools Field visualization with multiple representations (intensity, phase, real/imaginary, complex). Stack visualization with animated sliders. Component visualization for phase masks and DOEs. Requires Makie.jl backend (CairoMakie, GLMakie, or WGLMakie).

Design Philosophy

FluxOptics follows these principles:

  • Differentiable by design: All components work with automatic differentiation
  • GPU-ready: Seamless CUDA.jl integration for acceleration
  • Composable: Build complex systems from simple components using pipe operator
  • Efficient: Pre-allocated buffers on-demand and optimized kernels
  • Flexible: Support for multi-wavelength, multi-mode, and off-axis propagation

Typical Workflow: Beam Splitter

This example demonstrates inverse design of a cascaded diffractive optical system that splits a single Gaussian beam into four spots arranged in a square pattern. We use a similar setup to the TorchOptics beam splitter example to enable comparison of both performance and API design philosophy.

1. Setup: Input and Target modes

using FluxOptics, Zygote, Optimisers
using CairoMakie

# Input: single Gaussian mode
ds = 10.0  # 10 microns
xv, yv = spatial_vectors(250, 250, ds, ds)
w0 = 150.0  # 150 microns
λ = 0.7  # 700 nm
u0 = ScalarField(Gaussian(w0)(xv, yv), (ds, ds), λ)
normalize_power!(u0)  # normalize u0 to unit power

# Target: coherent superposition of four Gaussian modes
offset = 3.8 * w0
positions = [(-offset, -offset), (offset, -offset), (-offset, offset), (offset, offset)]
vf = sum(positions) do (Δx, Δy)
    ScalarField(Gaussian(w0)(xv, yv, Shift2D(Δx, Δy)), (ds, ds), λ)
end
normalize_power!(vf)  # normalize vf to unit power

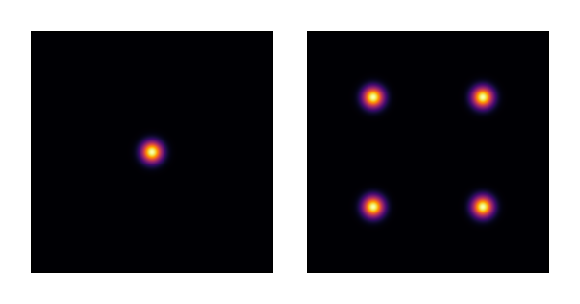

# Visualize input and target
visualize(((u0, vf),), intensity; colormap=:inferno, height=120)
Example block output

2. Build Trainable System

We use a cascade of three trainable phase masks with Rayleigh-Sommerfeld propagation between them:

source = ScalarSource(u0)
doe1 = Phase(u0, (x, y) -> 0.0; trainable=true, buffered=true)
doe2 = Phase(u0, (x, y) -> 0.0; trainable=true, buffered=true)
doe3 = Phase(u0, (x, y) -> 0.0; trainable=true, buffered=true)
prop = RSProp(u0, 2e5; use_cache=true)  # 200mm propagation

system = source |> doe1 |> prop |> doe2 |> prop |> doe3 |> prop |> (; inplace=true)

3. Define Loss and Optimize

We maximize power coupling to the target pattern using the Adam optimizer:

metric = PowerCoupling(vf)
loss(m) = sum(1 .- metric(m().out))

opt = FluxOptics.setup(Optimisers.Adam(0.1), system)

# Warm up for accurate allocation estimation
_, g = withgradient(loss, system);
FluxOptics.update!(opt, system, g[1])

# Reset phase masks (allows re-running optimization)
foreach(d -> fill!(d, 0), (doe1, doe2, doe3))

# Setup optimizer
losses = Float64[]

# Optimization loop
mem = @allocated for iter in 1:200
    val, grads = withgradient(loss, system)
    FluxOptics.update!(opt, system, grads[1])
    push!(losses, val)
end

println("Memory: ", Base.format_bytes(mem))
Memory: 40.872 MiB

4. Results

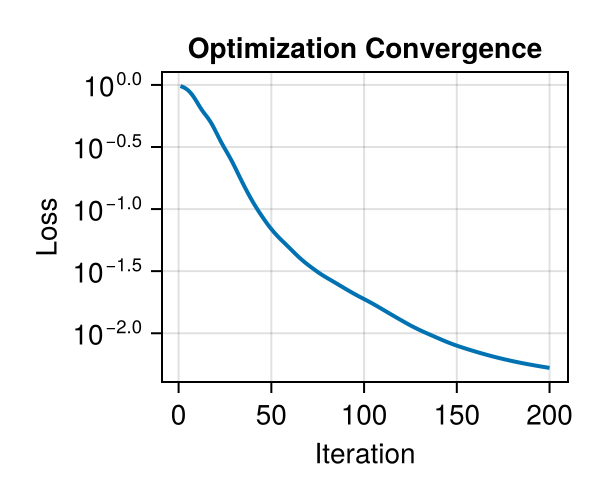

Convergence

fig = Figure(size=(300, 250))
ax = Axis(fig[1, 1],
    yscale=log10,
    xlabel="Iteration",
    ylabel="Loss",
    title="Optimization Convergence"
)
lines!(ax, losses; linewidth=2)
fig
Example block output

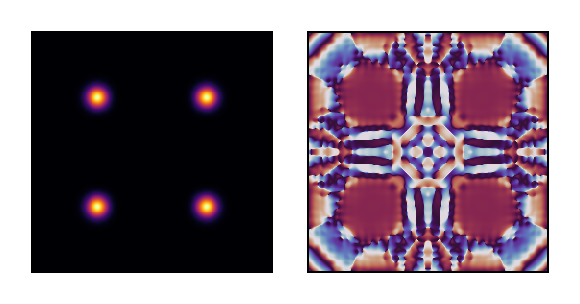

Final Output Field

uf = system().out
visualize(uf, (intensity, x -> -phase(x));
    colormap=(:inferno, twilight_shifted), height=120)
Example block output

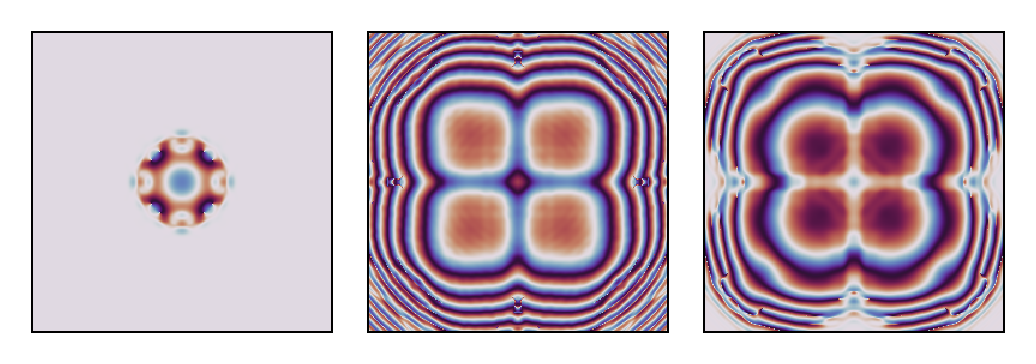

Optimized Phase Masks

# Extract and visualize the three DOE phase profiles
doe_phases = hcat(map(d -> -angle.(cis.(collect(d))), (doe1, doe2, doe3)))

visualize(doe_phases, identity;  colormap=twilight_shifted, height=150)
Example block output

Performance Benchmark

Hardware: NVIDIA RTX 4070 Super (12GB VRAM)

CPU Performance (multi-threaded):

  • Time: ~5 seconds (200 iterations)
  • Memory: 41 MiB

GPU Performance:

  • Time: ~0.27 seconds (200 iterations)
  • GPU Memory: Minimal allocation

Comparison with TorchOptics:

  • CPU: TorchOptics ~7s vs FluxOptics ~5s (1.4× faster)
  • GPU: TorchOptics ~3.5s vs FluxOptics ~0.27s (13× faster)

Scalability: The low memory footprint (41 MiB) enables optimization of much larger problems. FluxOptics can handle larger grids, multi-wavelength, and multi-mode problems that exceed GPU memory limits in other frameworks. This qualitative difference—not just speed, but problem accessibility—is the key advantage for real-world optical design.

GPU Acceleration

To run on GPU, add these lines at the beginning:

using CUDA
CUDA.allowscalar(false)

# After creating fields
u0 = cu(u0)
vf = cu(vf)

All operations will automatically run on GPU with no other code changes required.

Module Overview

Foundation Modules

These modules provide the basic building blocks for optical field representation and manipulation.

GridUtils creates coordinate systems for evaluating optical modes and components on spatial grids.

Modes generates common optical beam profiles (Gaussian, Hermite-Gaussian, Laguerre-Gaussian) and spatial layouts for multi-mode configurations.

Fields provides the ScalarField type, the central data structure representing optical fields with associated grid information, wavelength, and propagation direction.

Optical Components

The heart of FluxOptics, providing all optical elements and system composition tools.

Core defines the abstract component hierarchy, trainability system (Static/Trainable/Buffered), and bidirectional propagation interface used by all components.

Sources generate initial optical fields (e.g., ScalarSource). Sources are trainable, allowing optimization of the input beam profile.

Modulators modify field amplitude and phase: Phase for pure phase modulation, Mask for amplitude/complex transmission, TeaDOE for diffractive elements with a physical thickness that satisfies the Thin Element Approximation.

Fourier provides frequency-domain operations. FourierWrapper applies components in Fourier space, while FourierPhase and FourierMask are convenient constructors for frequency-domain filtering.

System enables optical system construction. Use the pipe operator |> to chain components: source |> phase |> lens |> propagator. Systems are callable and fully differentiable. FieldProbe captures intermediate fields for use in custom objective functions, visualizations, and debugging.

Utilities contains helper components: PadCropOperator for aliasing-free Fourier-based convolution (pad → convolve → crop), TiltAnchor for off-axis beam tracking, BasisProjectionWrapper for reduced-parameter optimization.

Free-Space Propagators implement field propagation through homogeneous media: Angular Spectrum method (ASProp), Rayleigh-Sommerfeld diffraction (RSProp), Collins integral for ABCD systems, Fourier lenses.

Bulk Propagators use Beam Propagation Method (BPM) for inhomogeneous media with spatially-varying refractive index. Supports paraxial and non-paraxial tilted propagation.

Active Media models stationary gain and amplification with saturable gain sheets.

Optimization Modules

OptimisersExt provides optimization algorithms and proximal operators. Use make_rules for per-component learning rates, ProxRule for constrained optimization with regularization.

Metrics defines loss functions for inverse design: PowerCoupling for mode matching, SquaredFieldDifference for field shaping, SquaredIntensityDifference for intensity targets.
