Optical system composition and execution.

Overview

The System module provides:

  • Optical systems combining sources and components
  • Component sequences for reusable propagation chains
  • Pipe operator syntax for intuitive system building
  • Component merging for performance optimization
  • Field probes for intermediate field capture

Examples

Basic System Construction

using FluxOptics

# Create field and components
xv, yv = spatial_vectors(256, 256, 2.0, 2.0)
u = ScalarField(Gaussian(20.0)(xv, yv), (2.0, 2.0), 1.064)

source = ScalarSource(u)
phasemask = Phase(u, (x, y) -> 0.01*(x^2 + y^2))
prop = ASProp(u, 500.0)

# Build system with pipe operator
system = source |> phasemask |> prop

# Execute system
result = system()
power(result.out)[]
1.0000000000000004

Component Merging

using FluxOptics

xv, yv = spatial_vectors(128, 128, 2.0, 2.0)
u = ScalarField(Gaussian(15.0)(xv, yv), (2.0, 2.0), 1.064)

source = ScalarSource(u)

# Create multiple phase masks
phase1 = Phase(u, (x, y) -> 0.01*x^2)
phase2 = Phase(u, (x, y) -> 0.01*y^2)
phase3 = Phase(u, (x, y) -> 0.01*x*y)

# Without merging: 3 separate phase operations
system_no_merge = source |> phase1 |> phase2 |> phase3
components_no_merge = get_components(system_no_merge)

# With merging: phases combined into single operation
system_merged = source |> phase1 |> phase2 |> phase3 |> (; merge_components=true)
components_merged = get_components(system_merged)

# Compare number of operations
(length(components_no_merge), length(components_merged))
(3, 1)

Field Probes

using FluxOptics, CairoMakie

xv, yv = spatial_vectors(256, 256, 1.0, 1.0)
u = ScalarField(Gaussian(30.0)(xv, yv), (1.0, 1.0), 1.064)

source = ScalarSource(u)
phasemask = Phase(u, (x, y) -> 0.01*(x^2 + y^2))
lens = FourierLens(u, (2.0, 2.0), 1000.0)
prop = ASProp(u, (2.0, 2.0), 4000.0)

# Insert probes to capture intermediate fields
probe1 = FieldProbe()
probe2 = FieldProbe()

system = source |> phasemask |> probe1 |> lens |> probe2 |> prop

# Execute and access intermediate fields
result = system()

# Access fields at probe locations
field_after_phase = result.probes[probe1]
field_after_lens = result.probes[probe2]
final_field = result.out

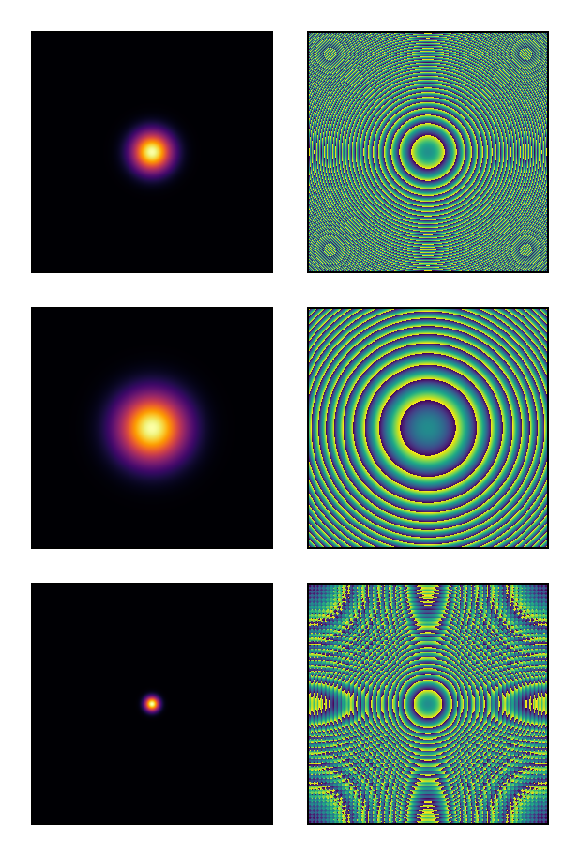

# Show intensity at each stage
visualize((field_after_phase, field_after_lens, final_field), (intensity, phase);
    colormap=(:inferno, :viridis), height=120)
Example block output

Key Types

Key Functions

Design Patterns

System Construction

Use pipe operator for readable system building:

system = source |> component1 |> component2 |> component3

Component Merging

Enable merging for performance:

system = source |> phase1 |> phase2 |> (; merge_components=true)
# Adjacent compatible components are merged

Field Probes

Insert probes to capture intermediate fields:

probe = FieldProbe()
system = source |> phase |> probe |> lens
result = system()
intermediate = result.probes[probe]
