Fox-Li Cavity Simulation: Quasi-Ince-Gaussian Mode Formation

This tutorial demonstrates the Fox-Li iterative method for finding cavity eigenmodes in a semi-degenerate laser resonator configuration. Under specific conditions, the cavity supports quasi-Ince-Gaussian modes (quasi-IGᵉ₉₃ in this case) - modes that are nearly invariant under propagation despite not being true IG eigenmodes.

Quasi-IG vs True IG Modes

True Ince-Gaussian modes with closed nodal lines cannot be excited with single-lobe pumping away from degeneracy: there will always exist a mode without closed nodal lines that has better overlap with the pump (gain-matching criterion). The quasi-IG patterns observed here only emerge near cavity degeneracies.

For details, see: N. Barré, M. Romanelli, and M. Brunel, "Role of cavity degeneracy for high-order mode excitation in end-pumped solid-state lasers", Opt. Lett. 39, 1022-1025 (2014).

Physical Setup

We simulate a laser cavity with:

• A flat mirror with gain medium (near field)
• A curved output coupler with aperture (far field)
• Cavity length close to the stability boundary (semi-degenerate)

The Fox-Li method iteratively propagates the field through the cavity until convergence to the eigenmode.

using FluxOptics, CairoMakie
using Random
Random.seed!(15);  # Determinist example

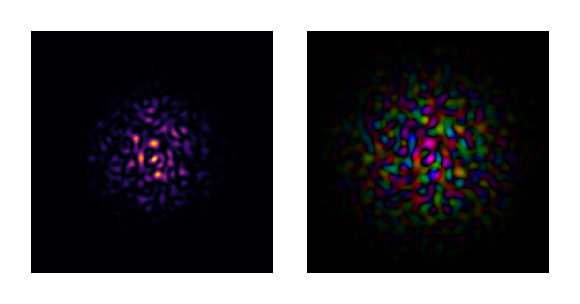

Initial Field: Speckle Pattern

We start with a random speckle pattern as initial condition. This generic field contains contributions from all cavity modes - the iterative process will select the dominant eigenmode through preferential amplification.

ns = 512, 512
ds = 4.0, 4.0

λ = 1.064
NA = 0.01

w0 = 500.0

speckle_dist = generate_speckle(ns, ds, λ, NA; envelope = Gaussian(w0))
u0 = ScalarField(speckle_dist, ds, λ)
normalize_power!(u0, 1e-1)

visualize(u0, (intensity, complex); colormap=(:inferno, :dark), height=120)

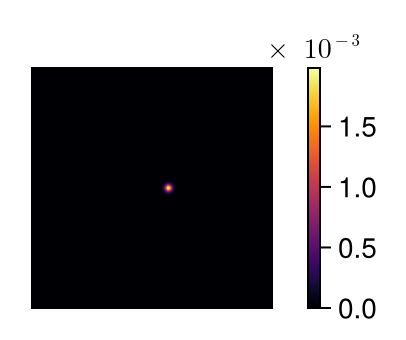

Gain Medium Configuration

The gain sheet provides selective amplification with saturable gain dynamics. The off-center Gaussian pump profile (xc = 140 µm) breaks the cylindrical symmetry.

dz = 1000.0
Isat = 1.0
g0m = 2e-3
wg = 30.0
xc = 140.0
gain = GainSheet(u0, dz, Isat, (x, y) -> g0m * exp(-((x-xc)^2+y^2)/wg^2))

visualize(gain, identity; colormap=:inferno, show_colorbars=true, height=120)

Cavity Geometry: Semi-Degenerate Configuration

The cavity length ℓ ≈ 101 mm is close to the half-degenerate condition (ℓ = Rc/2), where the stability parameter approaches unity. This near-instability regime supports complex transverse mode structures.

We use a magnification factor of 2 between the two mirrors to properly sample the field at both ends of the cavity.

ℓ = 101000.0  # Close to half-degenerate cavity

s = 2
ds′ = s .* ds

p12 = ParaxialProp(u0, ds′, ℓ; use_cache = true)  # Magnification ×2
p21 = ParaxialProp(u0, ds′, ds, ℓ; use_cache = true)

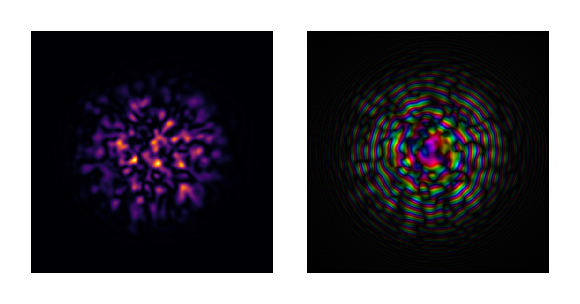

half_cavity = gain |> p12

uf = half_cavity(u0).out

visualize(uf, (intensity, complex); colormap=(:inferno, :dark), height=120)

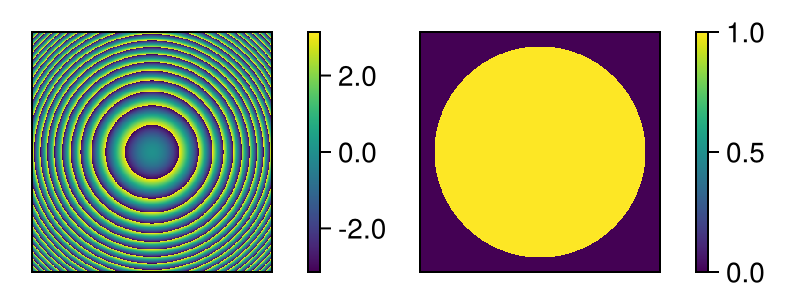

Output Coupler: Spherical Mirror with Aperture

The output mirror has 98% reflectivity and 200 mm radius of curvature. The aperture prevents the field from overflowing the computational grid, which would lead to numerical instabilities during iteration.

R = 0.98
Rc = 200000.0
aperture_radius = 1800.0
mirror = TeaReflector(uf, (x, y) -> -(x^2+y^2)/(2*Rc); r = -sqrt(R))
mirror_phase = phase(cis.(2π/λ .* get_data(mirror)))
aperture = Mask(uf, (x, y) -> x^2 + y^2 < aperture_radius^2 ? 1.0 : 0.0)

cavity = half_cavity |> mirror |> aperture |> p21 |> (; inplace = true)

visualize(((mirror_phase, aperture),), real; show_colorbars=true, height=120)

Fox-Li Iteration: Eigenmode Convergence

We iteratively propagate the field through the complete cavity round-trip. Each iteration consists of: gain → propagation → mirror+aperture → back-propagation. After ~5000 iterations, the field converges to the cavity eigenmode.

u0c = copy(u0)
utmp = u0c

for i in 1:5000
    utmp = cavity(utmp).out
end

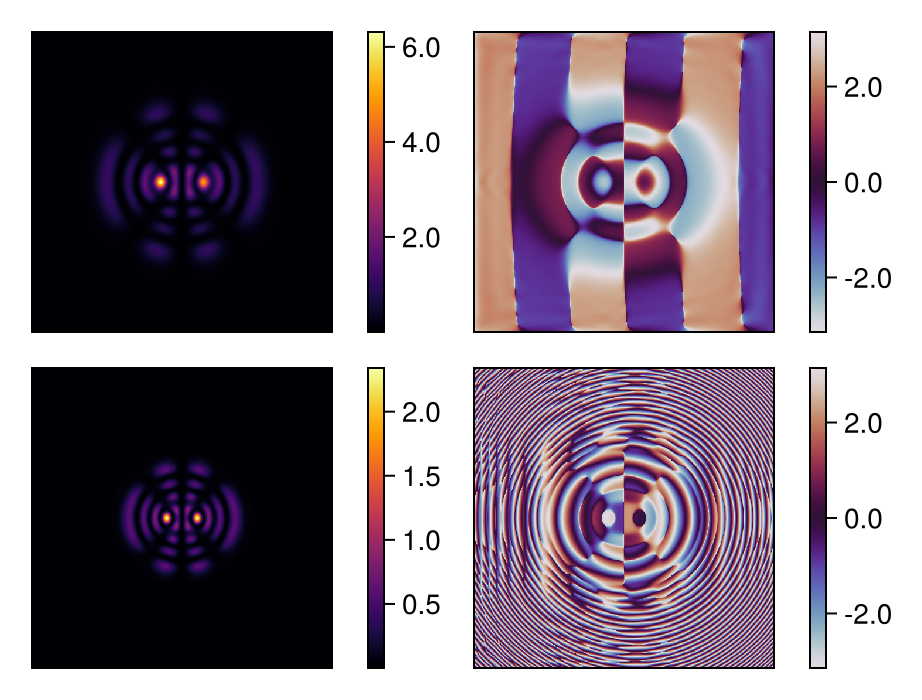

Converged Eigenmode: Quasi-Ince-Gaussian IGᵉ₉₃

The converged mode exhibits an elliptical intensity pattern reminiscent of Ince-Gaussian modes. This quasi-IG mode only exists near the cavity degeneracy point and maintains its structure approximately through propagation.

u_near = cavity(utmp).out
u_mirror = half_cavity(u_near).out

visualize((u_near, u_mirror), (intensity, phase);
           colormap=(:inferno, :twilight), show_colorbars=true, height=150)

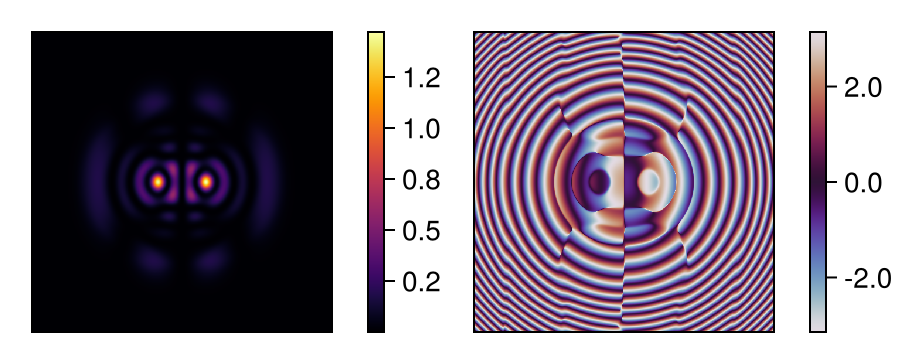

Far-Field Characterization

Propagating the eigenmode to twice the cavity length reveals the far-field intensity distribution and phase structure.

p_far = ParaxialProp(u_near, 2 .* ds, 2*ℓ; use_cache = true)
u_far = propagate(u_near, p_far, Forward)

visualize(u_far, (intensity, phase);
           colormap=(:inferno, :twilight), show_colorbars=true, height=150)
